Microwave PCBs are at the heart of modern high-frequency applications, powering essential technologies in telecommunications, aerospace, and beyond. Unlike traditional PCBs, these specialized circuit boards are engineered to handle signals in the microwave frequency range, often exceeding 1 GHz. Their unique features and stringent design requirements make them indispensable in a variety of industries.
In this article, we’ll explore what makes Microwave PCBs unique, their materials, design considerations, and their wide-ranging applications.

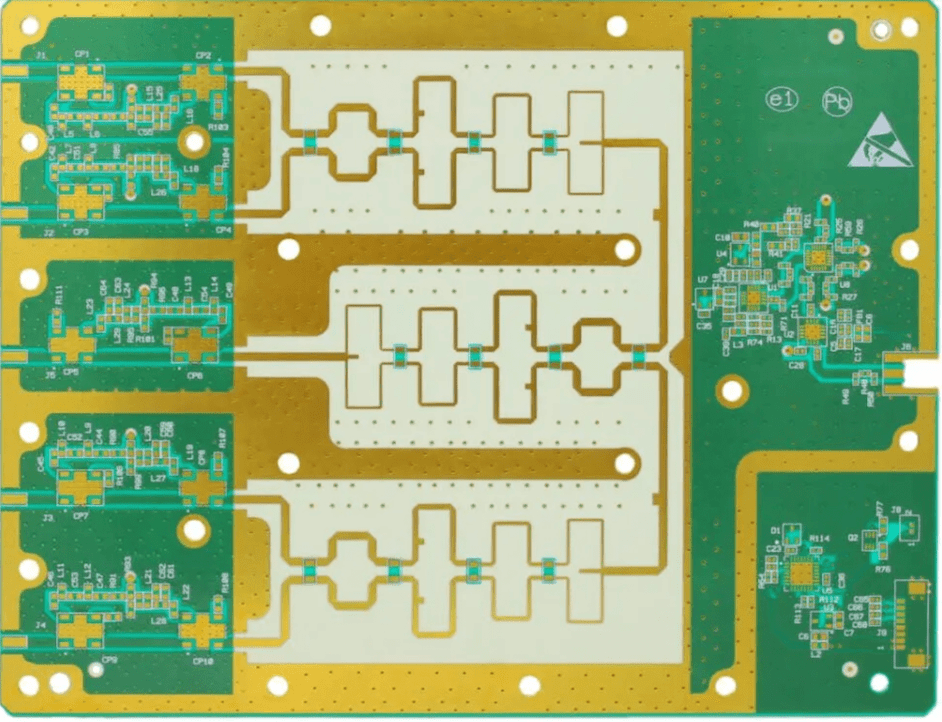

A Microwave PCB is a specialized printed circuit board designed to handle high-frequency signals, typically ranging from 50 MHz to above 2 GHz. These boards are essential in applications where signal integrity is critical, such as telecommunications, aerospace, and medical devices.
Microwave PCBs differ significantly from standard PCBs due to their focus on low dielectric loss, impedance control, and precise signal transmission. They often utilize advanced materials like PTFE, ceramics, or hybrid laminates that combine FR-4 and PTFE layers to achieve superior performance. These materials are chosen for their ability to handle the stringent electrical, thermal, and mechanical demands of high-frequency applications.
By prioritizing these specialized properties, Microwave PCBs enable reliable operation in environments where even minor signal loss or interference can significantly impact performance.
Microwave PCBs are defined by several key characteristics that set them apart from traditional boards. One of the most notable features is their ability to handle high-frequency signals with minimal distortion. This is achieved through careful material selection and design.
Additionally, these boards excel in managing thermal loads. The heat generated by high-frequency signals can degrade performance, so effective thermal management is a critical feature. Finally, their robust construction ensures durability in demanding environments, such as aerospace or industrial settings.
The selection of materials is a cornerstone of Microwave PCB design, directly influencing signal integrity and overall performance. Commonly used materials include PTFE (polytetrafluoroethylene), ceramic, and Rogers laminates, each offering unique advantages tailored to specific high-frequency requirements.
PTFE, renowned for its low dielectric constant and exceptional electrical properties, is ideal for minimizing signal loss in high-frequency applications. However, its flexibility poses challenges during the manufacturing process, requiring specialized handling and tooling.
Ceramic materials, known for their thermal stability and mechanical strength, excel in demanding environments but often come with higher costs, making them suitable for premium or mission-critical designs.
Rogers laminates strike a balance, combining ease of processing with reliable electrical performance, making them a preferred choice for many commercial and industrial applications.
When selecting materials, engineers must evaluate key parameters such as dielectric constant, loss tangent, and thermal conductivity. Additionally, considerations like operating frequency, manufacturing complexity, and cost constraints play a pivotal role in identifying the ideal substrate for specific applications. By aligning material properties with design goals, engineers can achieve optimized performance in even the most challenging high-frequency environments.
| Material | Key Features | Advantages | Disadvantages | Common Applications |
|---|---|---|---|---|
| PTFE | Low dielectric constant, minimal signal loss, high chemical resistance. | Excellent electrical performance, suitable for high-frequency signals. | Flexible, challenging to manufacture, requires specialized tooling. | High-frequency RF circuits, antennas, satellite systems. |
| Ceramic | High thermal stability, excellent mechanical strength, low loss tangent. | Ideal for demanding environments, high heat dissipation. | Higher cost, limited flexibility. | Aerospace, automotive radar, and mission-critical systems. |
| Rogers Laminates | Balanced dielectric properties, ease of processing, stable performance. | Cost-effective, combines ease of manufacturing with reliable performance. | Slightly higher cost than FR-4, may not match PTFE's performance in all areas. | Commercial electronics, industrial automation, and communication devices. |
| FR-4 (for hybrids) | Standard dielectric properties, low cost, used in hybrid stack-ups with other materials. | Inexpensive, widely available, good structural support. | Poor performance in high-frequency applications, higher loss tangent. | Used in hybrid PCBs to balance cost and performance. |
Designing a Microwave PCB requires exceptional precision and a thorough understanding of high-frequency signal behavior. By addressing key design aspects systematically, engineers can overcome challenges and achieve reliable performance.
Impedance control is crucial in high-frequency designs to minimize signal reflection and distortion. Achieving precise impedance involves carefully selecting materials with stable dielectric properties and low dissipation factors, such as PTFE or ceramic laminates. For instance, PTFE with a dielectric constant of approximately 2.1 is ideal for reducing signal loss, while Rogers materials provide a balance between performance and cost.
In addition to material selection, trace geometry plays a pivotal role. Engineers must maintain consistent trace width, spacing, and thickness throughout the design. Sudden changes in trace dimensions or sharp bends can cause impedance discontinuities, leading to signal degradation. Advanced simulation tools, such as HFSS, are invaluable for validating these parameters before production, ensuring that the impedance matches the target value, typically 50Ω.
High-frequency signals naturally experience attenuation, but proper design choices can mitigate this. Microstrip lines are often used for simplicity, while stripline structures, enclosed by ground planes, offer better shielding and reduced radiation loss. Shortening the length of traces carrying high-frequency signals is another effective approach; ideally, trace length should not exceed 1/20 of the signal wavelength.
Material selection also directly impacts signal loss. Laminates like Rogers RO4350B, with a dissipation factor of 0.003 at 10GHz, outperform traditional FR4 materials in reducing power dissipation. Additionally, smooth transitions in trace geometry, such as mitered corners for directional changes, help maintain signal integrity.
Effective thermal management is critical in Microwave PCB designs due to the substantial heat generated by high-frequency signals. Techniques such as incorporating thermal vias beneath heat-generating components and using copper heat spreaders ensure efficient heat dissipation. Materials with high thermal conductivity, such as aluminum nitride or ceramic laminates, further enhance thermal stability, especially in high-power applications.
Dynamic simulations are also essential for predicting heat distribution and identifying potential hotspots. By addressing thermal challenges proactively, designers can prevent performance degradation and ensure long-term reliability.
Crosstalk, or the unintentional transfer of energy between adjacent signal traces, poses a significant challenge in dense PCBs. Increasing trace spacing and introducing co-planar ground planes between high-frequency traces are effective strategies for minimizing crosstalk. For instance, in a 10GHz design, maintaining a spacing of four times the trace width can significantly reduce interference.
Parallel traces should be avoided where possible, or their lengths should be minimized to prevent coupling. For critical designs, shielded via grids can be used to further enhance isolation between layers.
Return loss arises when impedance mismatches occur along the signal path, causing signal reflection. Ensuring continuous ground planes beneath high-frequency traces provides a low-impedance return path, reducing reflection and improving signal transmission. Additional techniques, such as adding tuning stubs or using impedance-matching networks, help achieve optimal performance.
Connector design also plays a crucial role. Mismatched connectors can introduce significant losses, making it essential to use RF-specific connectors with carefully designed transitions.
High-frequency designs are inherently sensitive to various types of noise, such as thermal noise and phase noise. Bandpass filters are commonly used to isolate desired frequency ranges, while low-inductance decoupling capacitors reduce power supply noise. Active noise cancellation circuits can further enhance signal quality, particularly in applications requiring high data integrity.
For example, in satellite communication systems, phase noise reduction through compensating circuits ensures cleaner signals, improving overall system performance.
The manufacturing process for Microwave PCBs involves several precise steps. It begins with material preparation, where the substrate is carefully selected and processed to meet design requirements. Next, the copper layers are etched to form the circuit traces, followed by the application of plating to improve durability and conductivity.
Lamination is a critical step where multiple layers are aligned and pressed together. This ensures the board's structural integrity. Finally, quality assurance tests, such as signal integrity checks and thermal stress tests, are conducted to ensure the board meets performance standards.
Related article: The 15-Step PCB Manufacturing Process for Multilayer PCB
Microwave PCBs are indispensable across various industries due to their ability to manage high-frequency signals with exceptional precision and reliability. Here’s how they contribute to key sectors:
In telecommunications, Microwave PCBs form the backbone of critical systems such as 5G cellular base stations, satellite communication networks, and microwave relays. Their precise impedance control and low signal loss ensure high-speed, low-latency data transmission, which is essential for modern communication technologies.
The aerospace and defense industries rely heavily on Microwave PCBs for systems that demand precision and robustness under extreme conditions. These PCBs are essential in radar technologies, electronic warfare systems, and avionics, where maintaining high-frequency performance is vital.
Microwave PCBs are at the core of advanced medical imaging devices, including MRI and CT scanners, which require consistent signal quality to deliver precise diagnostic results. These PCBs enable high-frequency signal transmission with minimal noise, supporting the functionality of critical components such as radiofrequency coils.
Partnering with a reliable manufacturer is crucial for ensuring the performance and longevity of Microwave PCBs. At VictoryPCB, we specialize in high-frequency PCB manufacturing, combining advanced technology, premium materials, and stringent quality control to meet the most demanding industry standards.
With expertise in high-frequency design, we utilize low-loss laminates such as PTFE and Rogers materials, ensuring minimal signal attenuation and precise impedance control. Our state-of-the-art fabrication and testing facilities include impedance measurement, thermal stress testing, and high-frequency signal integrity analysis, guaranteeing that every PCB meets strict performance criteria.
