A Zero PCB, also known as a perfboard or DOT PCB, is a versatile tool used widely in electronics prototyping. Unlike custom PCBs, which are manufactured with a specific circuit layout, zero PCBs have a grid of pre-drilled holes and copper pads with no predefined connections. This provides a blank canvas for creating and testing custom circuits, making them popular among hobbyists, students, and even professional engineers.
In this guide, we'll explore what zero PCBs are, their different types, applications, and how they can be an essential tool in your prototyping process.

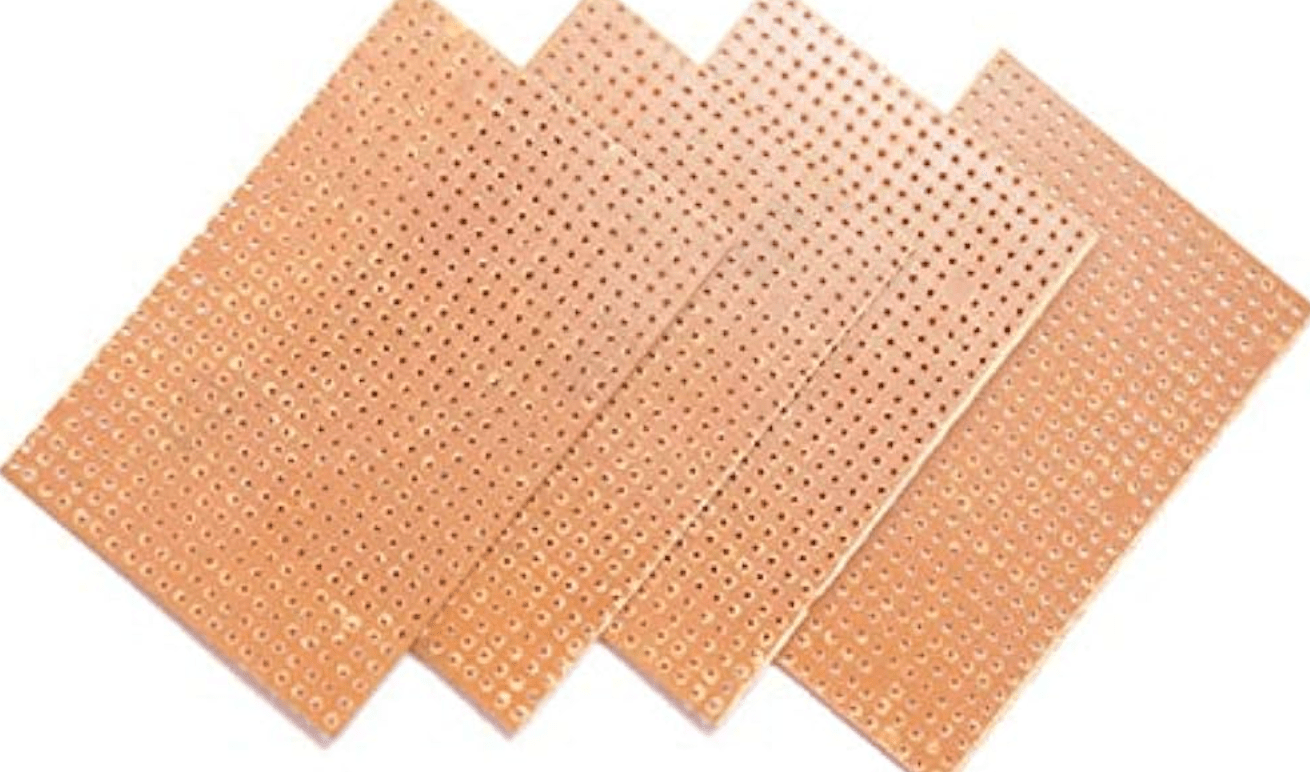

A Zero PCB is a general-purpose prototyping board featuring a grid of pre-drilled holes, each surrounded by a copper pad. It gets its name because it comes with no pre-configured connections, giving you complete flexibility to design your own circuit from scratch. Often referred to as a perfboard or DOT PCB, it allows for creative prototyping and testing.
Zero PCBs are constructed using a base material, usually fiberglass, with a regular grid of holes spaced 0.1 inches apart. Copper pads around each hole enable easy soldering of components, providing a more permanent prototyping solution compared to breadboards. Breadboards are useful for temporary experiments, but zero PCBs allow components to be soldered in place for more reliable, lasting projects.
Unlike bare PCBs, which are blank boards fabricated with a specific circuit pattern, zero PCBs have no such layout. This makes them versatile for a wide range of experimental designs, though it also requires more manual effort to wire up circuits.
There are a few different variations of zero PCBs available, each with its unique advantages.
The traditional zero PCB includes a simple copper-hole grid, ideal for basic prototyping and small circuit projects.

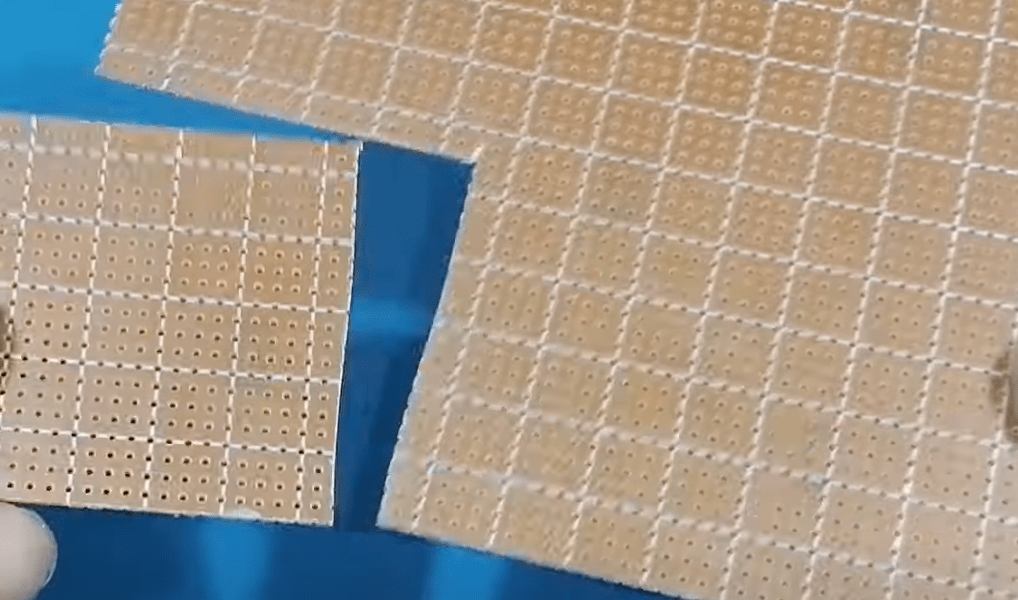

Some zero PCBs come with additional features, such as built-in power rails or connected pads, which simplify certain tasks like distributing power to multiple components.

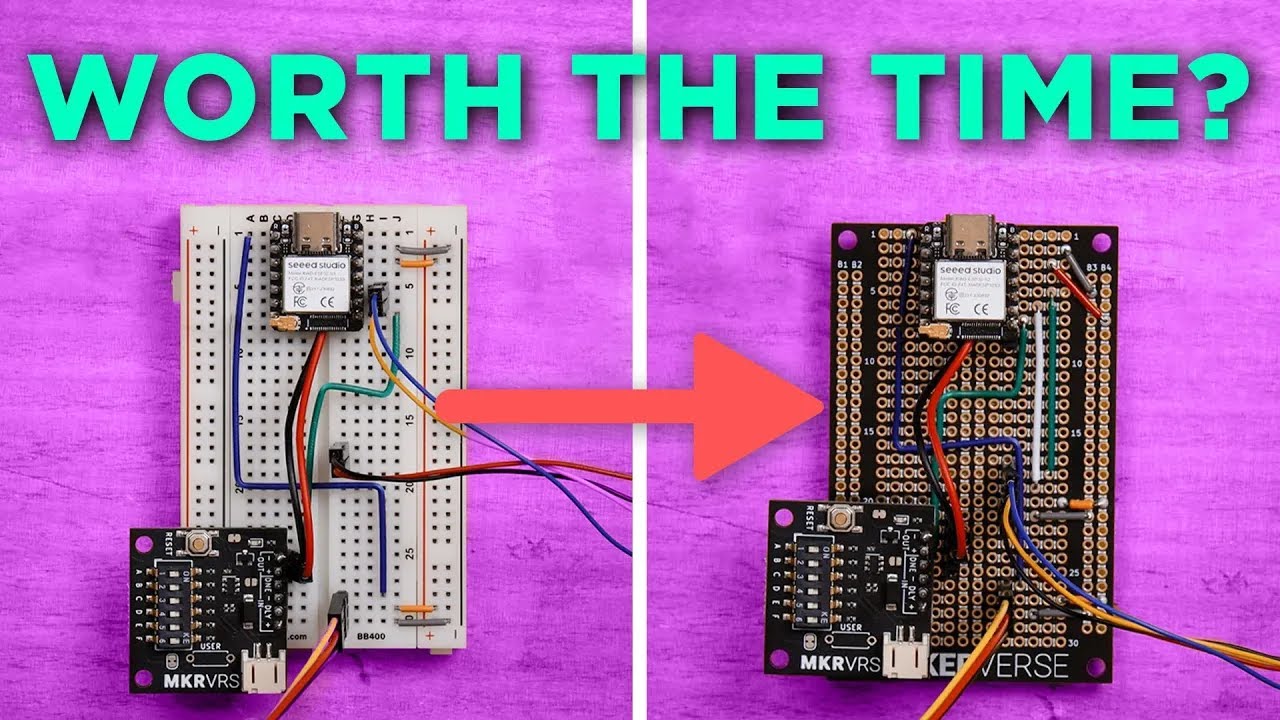

Breadboards are perfect for quickly experimenting with circuits without soldering. However, breadboards are limited in their reliability—connections can loosen over time. Zero PCBs, on the other hand, offer a more permanent and robust solution by allowing components to be soldered in place, making them suitable for more durable projects.
Using a zero PCB is simple, but it requires careful planning to ensure your circuit works as intended.
Start by designing the circuit you want to build. Sketch the layout and plan where each component will go, ensuring that everything fits well without overlapping wires. Once you have a plan, place the components onto the zero PCB according to your design, making sure each lead fits into the appropriate hole.
After positioning the components, solder them to the board. Connect the copper pads using insulated wires, forming the necessary connections to complete your circuit. You’ll need tools like a soldering iron, solder wire, wire cutters, and optionally, a multimeter for testing connections.
If you’re just starting out, begin with simple circuits to practice soldering skills. Use heat-resistant clips to hold components in place while soldering, and work in a well-ventilated area to ensure safety.
Zero PCBs are extremely versatile and have a wide range of applications.
Prototyping: They are most commonly used for prototyping new circuit designs before committing to a custom PCB layout. Their flexibility makes rapid iteration and troubleshooting easier.
Educational Purposes: Schools and universities use zero PCBs to teach basic circuit design and soldering. Their simplicity and hands-on approach make them great for learning.
Small Projects and Repairs: DIY enthusiasts often use zero PCBs to build small projects or repair electronic devices. Their cost-effectiveness and adaptability make them perfect for quick fixes or experimental builds.
Zero PCBs come with both advantages and limitations, which are important to consider when choosing a prototyping method.
Advantages include:
Cost-effectiveness: Zero PCBs are more affordable than custom PCBs, making them ideal for budget projects.
Flexibility: They provide complete control over the circuit design, allowing for highly customized solutions.
Ease of Use: They are an excellent learning platform for beginners who want to practice soldering and understand basic circuit design.
Disadvantages include:
Limited to Simple Circuits: Zero PCBs are not suitable for complex or large-scale projects, as each connection must be manually soldered.
Labor-Intensive: Manually wiring and soldering each component can be time-consuming, particularly for intricate designs.
When deciding between different prototyping methods, it’s important to understand the advantages of each option.
Breadboards are great for quickly setting up and testing circuits without soldering. However, breadboard connections can loosen over time, which can lead to unreliable performance. Zero PCBs offer a more permanent solution, ideal for projects that need durability and longevity.
Custom PCBs are designed with a specific purpose in mind and feature predefined layouts. They are ideal for large-scale production and complex circuits. On the other hand, zero PCBs allow for free-form design, making them more practical for prototyping and small, one-off projects.
Creating a successful circuit on a zero PCB requires careful planning and attention to detail.
Before soldering, take the time to plan your layout. Ensure that components are placed in a way that minimizes the need for long wires and avoids overlapping connections. A well-planned layout will result in a more efficient and functional circuit.
Use short, direct wiring whenever possible. This helps keep the circuit clean and reduces the risk of resistance or shorts. Always use insulated wires and make sure solder joints are neat and secure.
Avoid unnecessary wire crossings, as they can lead to short circuits. Always trim excess leads after soldering to prevent accidental connections.
1. What is the size of a zero PCB?
Zero PCBs are available in various sizes, typically with dimensions like 3x7 cm, 5x7 cm, or larger, depending on the project requirements.
2. Can zero PCBs be used for final products?
Yes, zero PCBs can be used for small-scale final products or custom electronics, especially when flexibility and low production volume are priorities.
3. What types of projects are best suited for zero PCBs?
Zero PCBs are perfect for prototyping, educational projects, DIY electronics, and simple repairs. They are well-suited for projects that do not require mass production.
4. How do I avoid mistakes when using a zero PCB?
Plan your layout in advance, use insulated wires, keep solder joints clean, and test connections with a multimeter to avoid errors.
5. Where can I buy a zero PCB?
Zero PCBs are widely available online through electronic component suppliers, marketplaces like Amazon, or specialized electronics stores.
Zero PCBs are an excellent tool for electronics enthusiasts, students, and professionals who need a versatile and cost-effective way to prototype circuits. Their flexibility, combined with the ability to create custom designs from scratch, makes them invaluable for experimentation and learning. Whether you're a beginner looking to practice soldering or an experienced hobbyist developing a unique circuit, zero PCBs offer the perfect platform for creativity and innovation.
