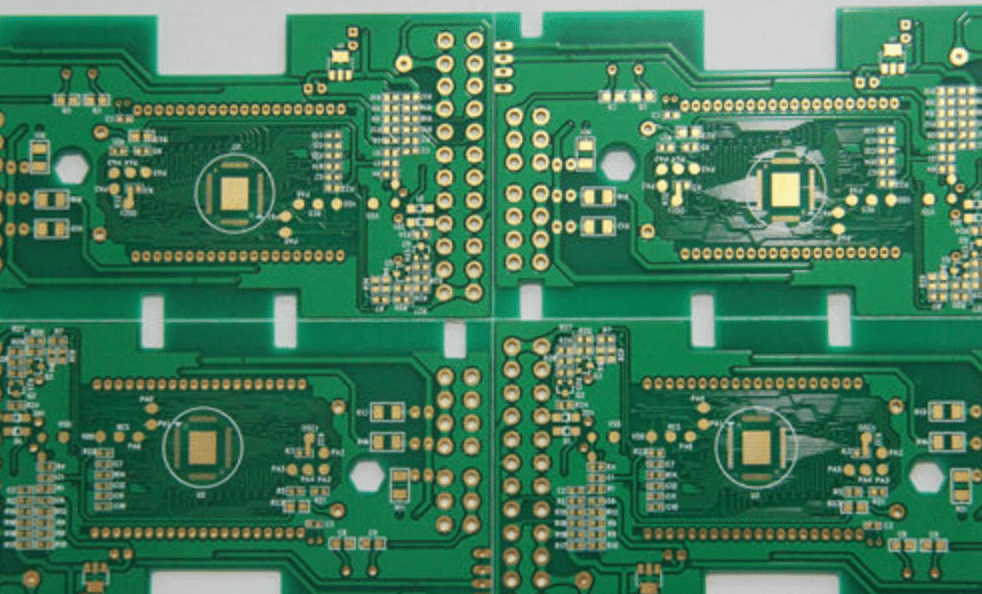

The Double-Sided Printed Circuit Board (PCB) assembly process plays a vital role in modern electronics manufacturing. Its ability to house components on both sides of the board has made it indispensable for compact, high-performance devices. From smartphones to industrial machinery, double-sided PCBs enable sophisticated designs in a small footprint.

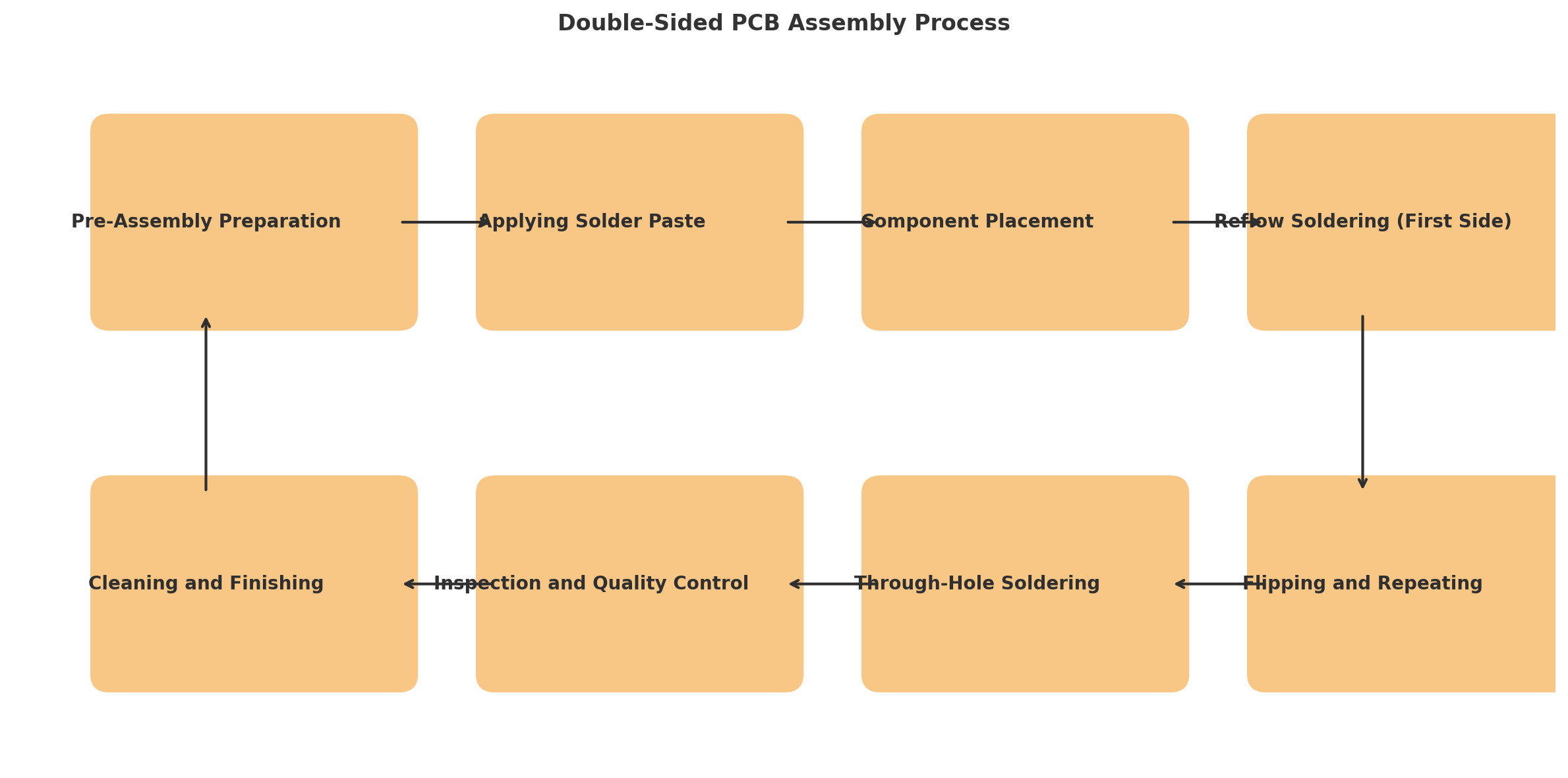

To achieve optimal results, understanding the nuances of the assembly process is crucial. This guide provides a detailed walkthrough of each step, enriched with insights and best practices to ensure successful double-sided PCB assembly.
Before the assembly process begins, meticulous preparation is essential to ensure efficiency and minimize errors. This phase focuses on readiness, including collecting components, tools, and reference materials.
Start by gathering the Bill of Materials (BOM) and assembly drawings. These documents detail the placement, orientation, and specifications of each component. Carefully inspect the PCB surface for defects, such as solder mask misalignments or irregular copper traces. Addressing these issues early prevents complications during assembly.
Creating an organized workspace is equally critical. Arrange components systematically to streamline the process, and equip the area with anti-static measures, sufficient lighting, and precision tools like magnifying lamps. These preparations lay the groundwork for a smooth assembly process.
Solder paste serves as the backbone of the assembly, providing a medium to attach components securely to the PCB. The application process demands precision and consistency.
Using a stencil, align it carefully over the PCB to apply solder paste to designated areas. This ensures accurate deposition on the pads where components will be placed. Proper stencil alignment is crucial to avoid solder bridges or uneven connections, which can compromise functionality.
With the solder paste in place, the next step is placing components. The dual-layer design of double-sided PCBs makes this phase especially intricate.
Surface-Mount Devices (SMDs) are positioned first. Automated pick-and-place machines ensure precision and speed, though manual placement with tweezers may be used for small-scale production. The goal is accurate alignment with the solder-pasted pads, guided by assembly drawings.
Once SMDs are placed, focus shifts to through-hole components. These are inserted carefully, ensuring their leads align perfectly with the through holes. Proper placement at this stage is vital for creating robust electrical connections later.
Reflow soldering secures the components on one side of the PCB. This process involves controlled heating to melt the solder paste and form reliable joints.
The PCB is passed through a reflow oven, which follows a temperature profile:
Preheating Phase: Gradual temperature rise activates the flux in the solder paste.
Reflow Phase: Peak temperatures melt the solder, ensuring strong bonds between components and pads.
Cooling Phase: Controlled cooling solidifies the solder without inducing thermal stress.
Once the first side is complete, the PCB is flipped for assembly on the second side. The process—solder paste application, component placement, and reflow soldering—is repeated with equal precision.
Special care is taken during flipping to prevent dislodging or damaging components on the completed side. This step highlights the importance of using robust reflow soldering techniques.
Through-hole components require additional soldering to establish secure connections. This phase is performed manually or using wave soldering techniques.
Manual Soldering: Skilled technicians use soldering irons to create precise joints. This method is ideal for small batches or complex designs.
Wave Soldering: For larger production runs, the PCB is passed over a wave of molten solder. This ensures uniform connections for all through-hole components, enhancing efficiency.
During this step, care must be taken to avoid overheating components, as this can degrade their performance or damage nearby circuits.
Inspection is a critical phase that ensures the assembled PCB meets design and performance standards. Multiple methods are used to verify quality:
Visual Inspection: Magnifying tools help identify solder bridges, misplaced components, or surface defects.
Automated Optical Inspection (AOI): Advanced machines scan the PCB for alignment and soldering errors, providing high accuracy.
Functional Testing: Electrical tests, such as continuity checks and in-circuit testing, validate the PCB’s functionality.
Defects identified during inspection are corrected through rework, ensuring the final product is reliable and meets specifications.
Learn more about PCB Inspection Equpiments & Methods.
The final steps focus on preparing the PCB for use. Cleaning removes residual flux and other contaminants that can compromise performance over time. Isopropyl alcohol (IPA) or specialized cleaning agents are commonly used.
A protective surface finish is then applied. This layer enhances durability, protecting the PCB from moisture, dust, and other environmental factors. Popular finishes include HASL (Hot Air Solder Leveling) and ENIG (Electroless Nickel Immersion Gold), selected based on the application’s requirements.
The double-sided PCB assembly process is a cornerstone of modern electronics manufacturing, enabling the creation of compact, high-performance devices. By mastering this process, manufacturers can produce reliable PCBs that meet the demands of today’s dynamic electronics market.
Whether you’re a designer, assembler, or manufacturer, understanding the intricacies of double-sided PCB assembly ensures better outcomes. Partnering with a trusted manufacturer further enhances your ability to achieve quality and performance in every product.
Embrace this process with confidence, and watch your innovations thrive in the ever-evolving world of electronics.
