PCB back drilling is an essential technique in high-speed printed circuit board design to ensure signal integrity. As devices transmit data at increasingly faster rates, small imperfections, like unused sections of vias, can cause signal degradation, reflections, and electromagnetic interference (EMI). PCB back drilling removes these unnecessary portions of plated through-holes, preventing impedance mismatches and improving overall signal performance. In this article, we’ll delve into the benefits of back drilling, how it works, key design factors, and its applications in high-frequency circuits.

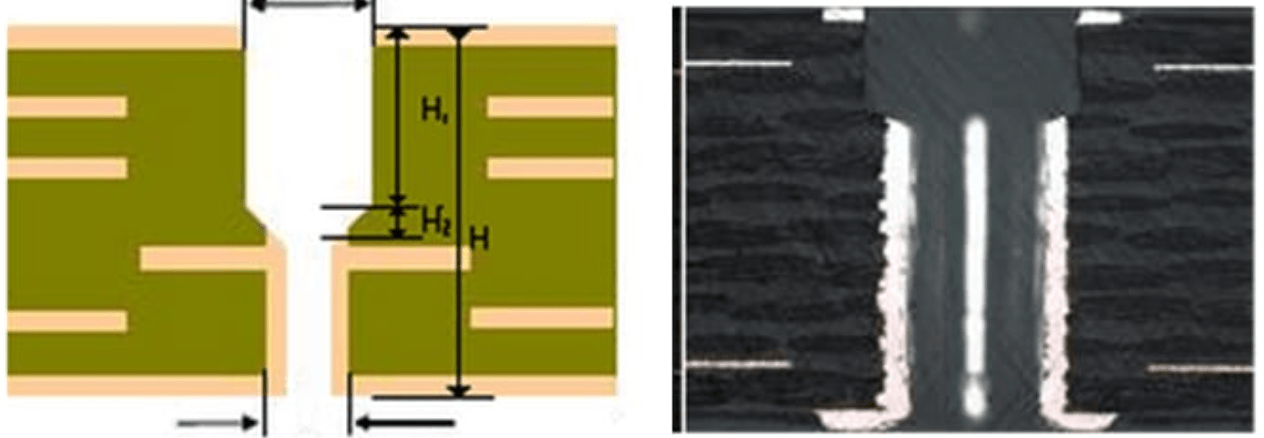

PCB back drilling is a controlled depth drilling technique used to remove the non-functional parts of plated through-holes, commonly known as via stubs. These stubs are unnecessary remnants of vias that can introduce signal distortion and EMI. The back drilling process involves drilling from the back side of the PCB to eliminate the stub while maintaining the integrity of the functional sections of the via.
When signals travel through vias, the presence of unnecessary copper in the stub can act like a small antenna, reflecting signals and disrupting the smooth transmission of high-frequency signals. By back drilling, engineers can remove this redundant portion, thus improving signal integrity and minimizing EMI.
At high frequencies, the presence of via stubs can become problematic. These stubs create an impedance discontinuity, leading to signal reflections, radiation, and crosstalk between neighboring traces. These effects become especially noticeable in high-speed digital circuits and radio frequency (RF) applications, where precision in signal transmission is critical.
By removing the non-functional parts of the via through back drilling, the path that the signal travels is shortened, leading to fewer reflections and less signal attenuation. This translates to improved signal quality and reliability, particularly in multi-gigabit circuits and data transmission systems.
Via stubs, acting as unintended antennas, can radiate electromagnetic energy, contributing to EMI and making it difficult to meet compliance standards for EMI and EMC (Electromagnetic Compatibility). Back drilling minimizes the stub length, reducing its ability to radiate and helping products meet stringent EMI requirements.
Back drilling allows for narrower spacing between channels and tighter layer stack-ups. This is crucial for applications requiring high route density and where every millimeter of space counts, such as in high-density interconnect boards.
Back drilling is carried out as one of the final steps in PCB fabrication. The process involves precision CNC drilling from the backside of the board. Here's a breakdown of how it works:

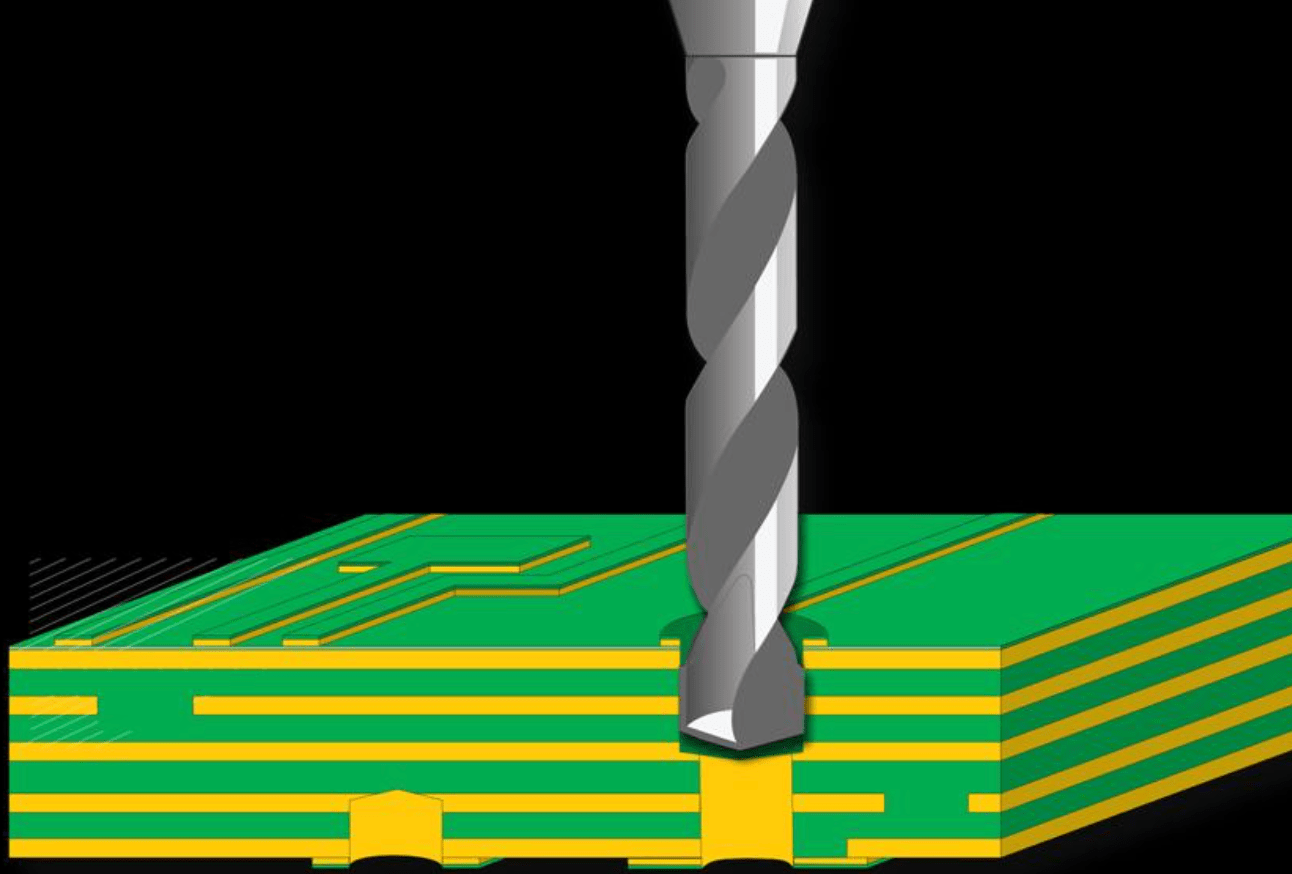

The CNC machine drills into the barrel of a selected plated through-hole from the back side. The depth of the drilling is carefully controlled to ensure that only the non-functional portion of the via is removed. Special drill bits (ranging from 0.2 mm to 1 mm) are used, depending on the via size and board thickness.
After drilling, any rough edges or resin smears around the drilled holes are cleaned through deburring. Additionally, some designs may require the hole to be plugged with copper to improve mechanical stability and create a conductive shield.
The success of the back drilling process depends heavily on the precision of the drilling. Even slight deviations in the depth of the drill can result in damage to the PCB's internal traces or other copper planes.
The material and thickness of the PCB play a significant role in the effectiveness of back drilling. For instance, FR-4 is a common material used in PCBs that is relatively easy to drill. However, boards made from ceramic or metal-core materials may require different drilling parameters due to their increased hardness or thermal properties.
Smaller vias require more precise drilling, as there's less room for error. Similarly, vias spaced too closely together can present challenges during the back drilling process, as the drill bit may accidentally remove material from neighboring vias.
Ensuring that there is sufficient clearance between the drill bit and the surrounding traces or plane layers is critical. If clearance is too tight, there's a risk of damaging critical copper features during drilling.
High-speed designs (above 5 Gbps) benefit the most from back drilling. Low-speed designs may not see a noticeable improvement in signal quality, as the stub effects are less pronounced at lower frequencies.
When designing a PCB with back drilling in mind, there are several key factors to consider:
Identify Back Drill Locations: Focus back drilling on high-speed signals where via stubs pose the greatest risk to signal integrity. Lower-speed signals or power vias may not require back drilling.
Avoid Back Drilling in Critical Areas: Avoid placing back-drilled holes under BGAs (Ball Grid Arrays) or connectors, as this could disrupt connections.
Work with Capable PCB Shops: Ensure that your PCB manufacturer has the capability and expertise to perform back drilling accurately. They should also be able to meet the required tolerances and depth control standards.
In addition to back drilling, other via technologies such as blind vias and buried vias can be used to manage signal integrity issues:
Blind and buried vias offer a similar solution by controlling the length of the via without requiring through-holes. However, back drilling provides greater precision and is more effective at removing stubs, especially in complex designs with high data rates.
Both methods improve signal integrity by reducing stub length, but back drilling allows for more precise control of via length, which is beneficial for ultra-high-speed circuits.
Back drilling is commonly used in a variety of high-speed and high-frequency applications, such as:
High-Speed Digital Boards: For multi-gigabit data rates, back drilling helps prevent signal loss and EMI in applications like network switches, optical transceivers, and telecom systems.
RF and Microwave Circuits: RF designs, especially in telecommunication and aerospace, benefit from reduced EMI and improved signal clarity.
HDI Boards: High-density interconnect boards with BGA packages and densely routed signals leverage back drilling to improve routing density and minimize crosstalk between traces.
To ensure optimal performance when implementing back drilling, follow these best practices:
Minimize the Number of Back Drilled Vias: Only drill the vias carrying high-speed signals to reduce cost and complexity.
Optimize Routing Strategies: Consider the PCB stack-up and routing channels during the design phase to minimize the need for back drilling.
Consult with Experts: Work closely with your PCB fabricator to ensure the back drilling process is executed accurately.
PCB back drilling is a vital technique for improving signal integrity, reducing EMI, and allowing for more efficient use of space in high-speed and high-frequency designs. By carefully removing via stubs, back drilling ensures smoother signal transmission and compliance with EMI standards. As designs push the limits of speed and complexity, back drilling becomes an essential tool for achieving optimal PCB performance.
