PCB mounting holes play a vital role in securing printed circuit boards to their enclosures or other surfaces. They ensure that the board remains stable, reducing the risk of damage due to movement or environmental factors. However, mounting holes are more than just mechanical anchors; they can also contribute to electrical functionality by connecting different layers of a PCB or aiding in heat dissipation. This article will explore the different types of mounting holes, their applications, and best practices for designing and implementing them in PCB layouts.

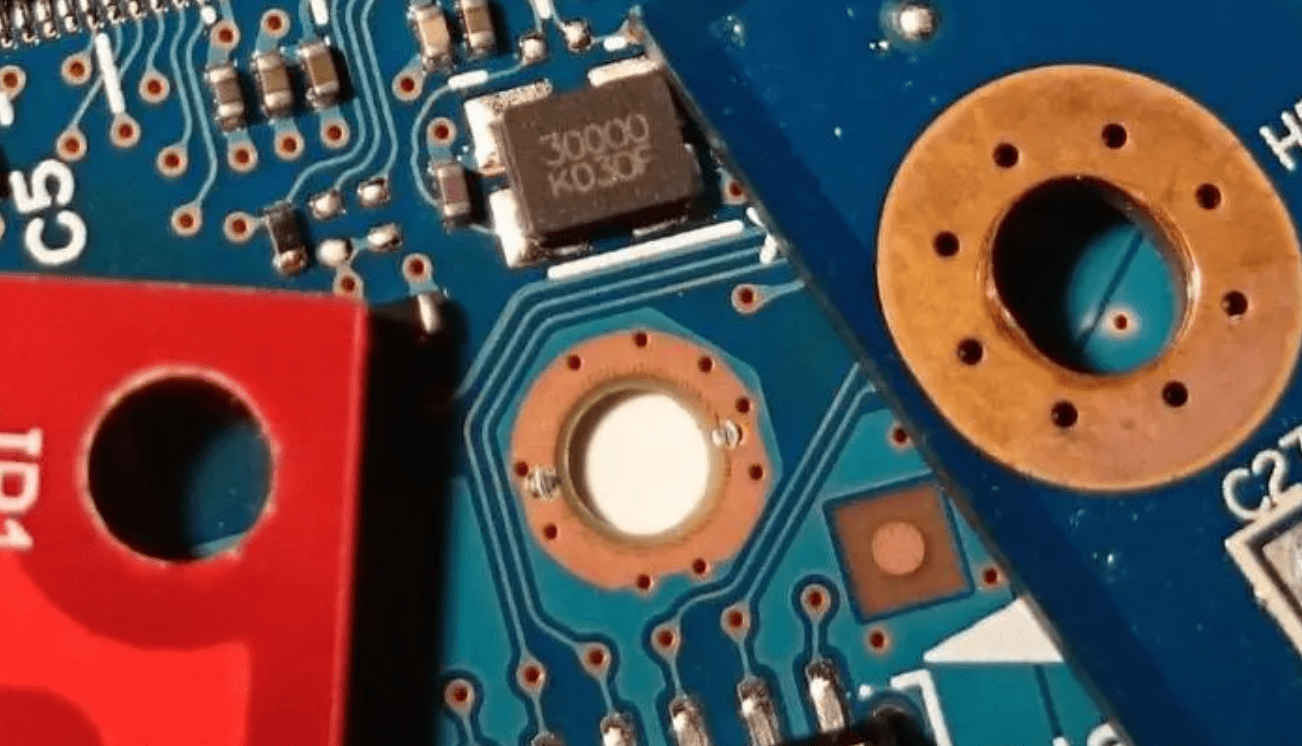

PCB mounting holes are drilled into the board to provide secure attachment points for fastening the PCB to a chassis or enclosure, ensuring mechanical stability. Typically placed at the corners or edges, these holes anchor the board in place to prevent movement and protect against external forces like vibrations. They are often surrounded by a copper pad or annular ring, which enhances both mechanical stability and electrical connectivity. Proper positioning and sizing of these holes are critical for ensuring the board's fit and functionality within its enclosure.
Mounting holes in PCBs can be categorized into two types based on their purpose and construction: plated and un-plated.
Plated mounting holes feature a conductive layer that facilitates electrical connections between different PCB layers, such as linking a ground plane from a lower layer to the top. These holes also serve as strong anchor points for screws or bolts, ensuring components remain securely attached under stress. Plated holes are ideal for applications requiring electrical grounding or heat dissipation, as they provide reliable paths for grounding and distribute electrical currents between layers.
Un-plated mounting holes are solely for mechanical purposes, isolated from electrical components and traces. They provide secure anchor points without contributing to the electrical circuit. These holes require a keep-out zone to ensure no traces or pads are placed too close, preventing accidental connections or damage during installation.

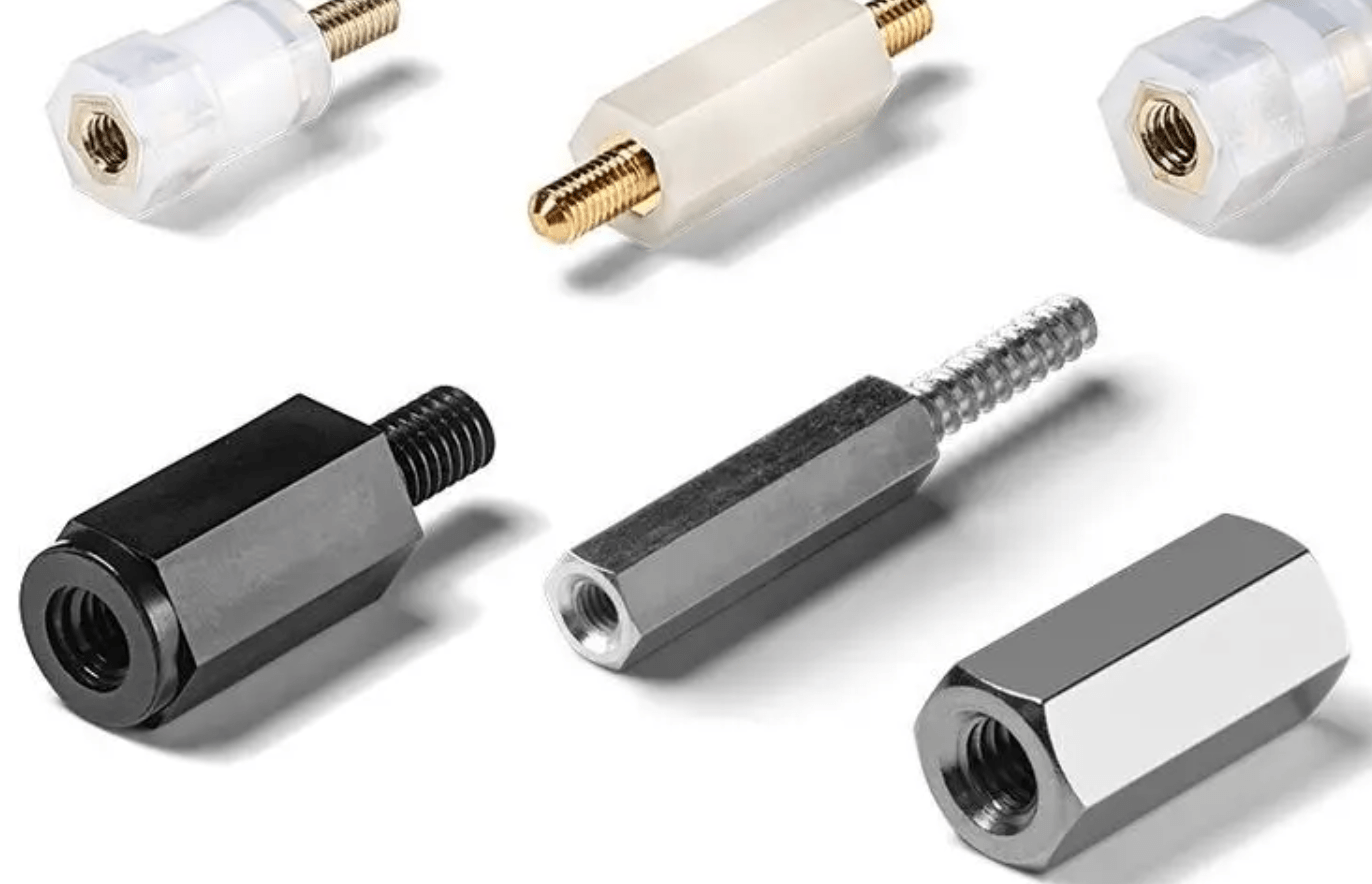

Selecting the appropriate fastener is a crucial step in designing PCB mounting holes. The fastener type will dictate the hole size, clearance, and layout.
When designing PCB mounting holes, selecting the fastener first is crucial to ensure the hole's size and diameter match the fastener's specifications. Fasteners, such as screws or bolts, have specific diameters, and the hole must be sized appropriately to prevent cracking or damaging the PCB material, like FR4. Additionally, clearance around the fastener’s head is necessary, especially for larger heads like hex or pan-head screws, to allow sufficient space for tool access and easy assembly without interfering with nearby components.
When choosing fastener heads for PCB mounting, flat-head fasteners are countersunk into the material, which can lead to stress fractures in the PCB, especially when tightened. In contrast, pan-head fasteners distribute force more evenly across the surface, minimizing the risk of damage. Additionally, tool access is a key consideration based on the type of fastener (e.g., Philips, Allen, Hex). It’s important to ensure enough clearance around the mounting hole for the tool to fit and operate without disturbing nearby components.
Plated mounting holes offer the advantage of grounding the PCB to its enclosure, which helps reduce electromagnetic interference (EMI) and improve overall performance. By leaving exposed copper around the mounting hole, fasteners can make direct contact with the PCB and enclosure, creating a grounded connection without the need for additional wiring. For better reliability, serrated fasteners are often used, as their serrations grip the copper and maintain a secure connection, especially in environments with vibrations, further reducing electrical noise and minimizing EMI.
Mounting holes can introduce mechanical stress and board flex when fasteners are tightened. This can lead to issues like micro fractures in nearby components or traces.
When fasteners are tightened, they can cause slight flexing in PCBs, particularly those made from FR4 material, which may result in cracks in solder joints or damage to fragile components like ceramic capacitors. To prevent this, it's important to keep sensitive components like capacitors and ferrite beads away from mounting holes. If such placement is unavoidable, using capacitors with flexible termination caps can help absorb stress and reduce the likelihood of damage caused by board flex.
In PCB designs, adding vias around mounting holes helps distribute mechanical stress over a larger area, reducing the risk of damage from external forces or vibrations. These vias can also enhance heat dissipation by connecting the mounting hole to a copper plane or heatsink, creating a thermal path that allows heat to escape more efficiently, thus improving the board's overall thermal management.
Designing effective mounting holes requires attention to both mechanical and electrical considerations.
Adequate Fastener Clearance: Ensure that the fasteners have enough clearance to be installed without damaging nearby components.
Place Components Wisely: Fragile components, such as ceramic capacitors, should be placed away from mounting holes to avoid damage from board flex or fastener pressure.
Grounding and EMI: Ensure that plated mounting holes connect to ground planes to reduce EMI. Using vias to improve heat dissipation can enhance the overall performance of the PCB, especially in high-power applications.
Mounting holes are an essential part of PCB design, contributing to both mechanical stability and electrical functionality. By understanding the differences between plated and un-plated holes, choosing the right fasteners, and considering factors like grounding and stress distribution, you can ensure that your PCB design is robust and reliable.
